Wi-Fi Based Next-Gen Nurse Call System for Hospitals

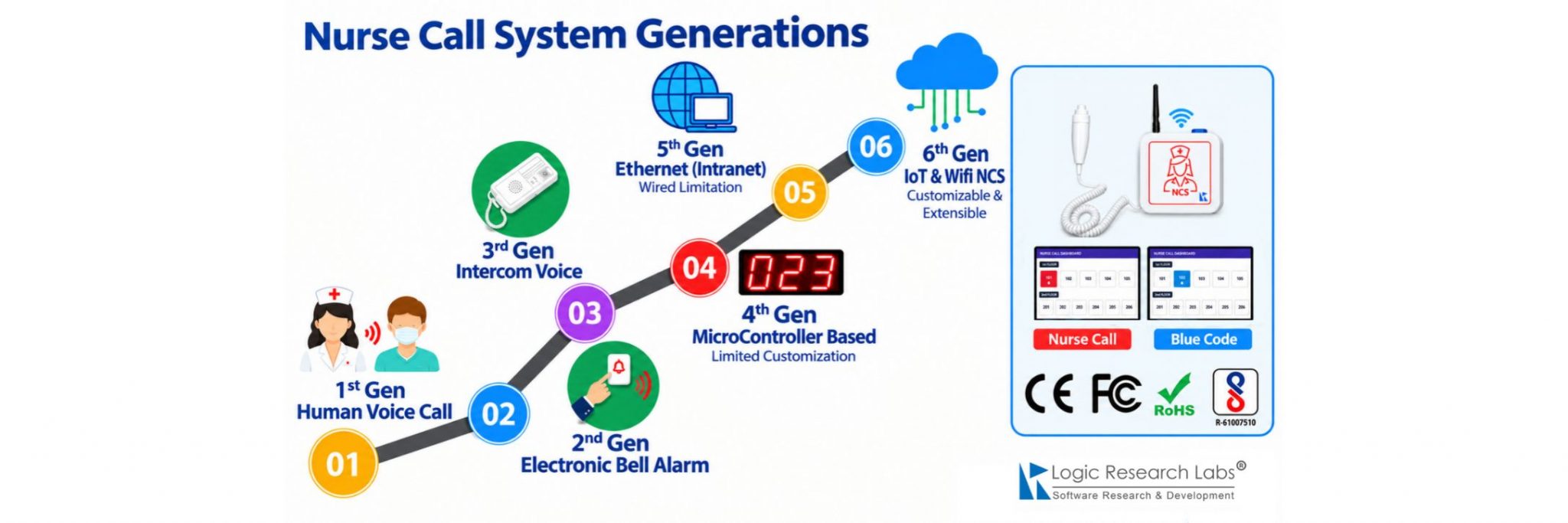

Next-Gen Nurse Call System is re-architecting of traditional NCS using advanced software and hardware technology that brings flexibility, reliability, availability, and scalability to Hospitals.

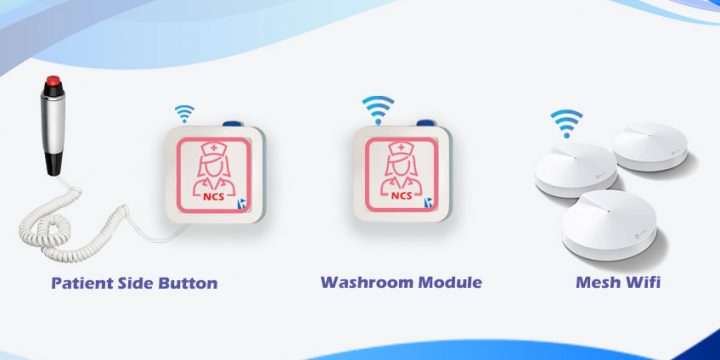

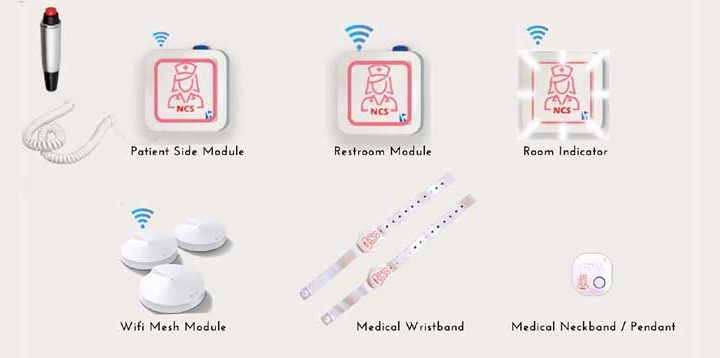

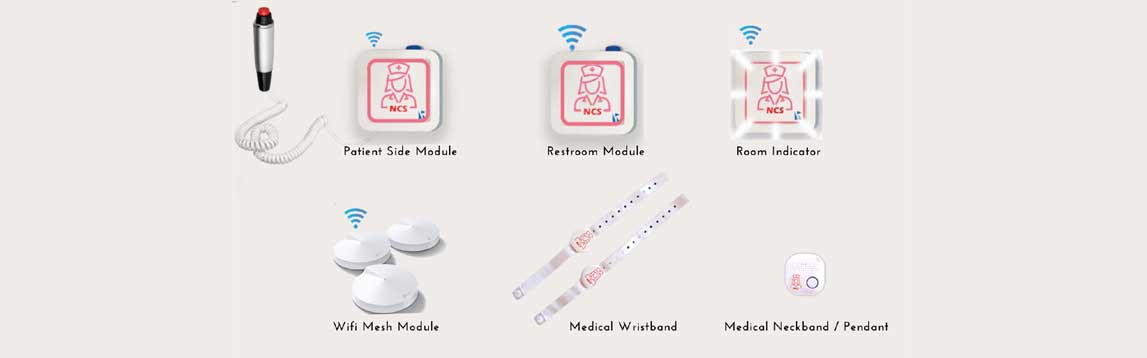

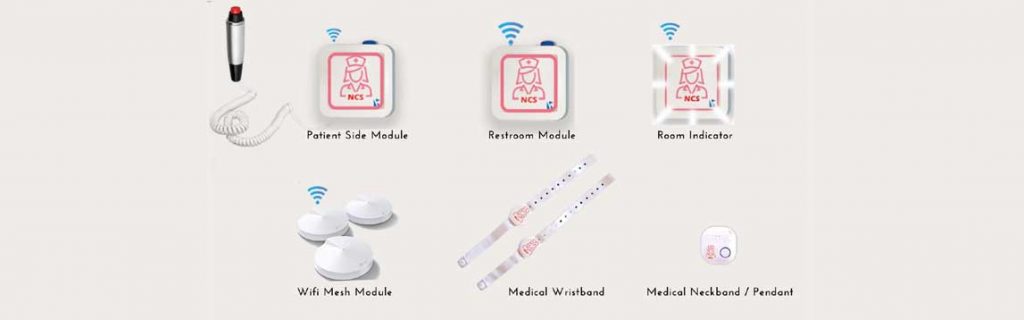

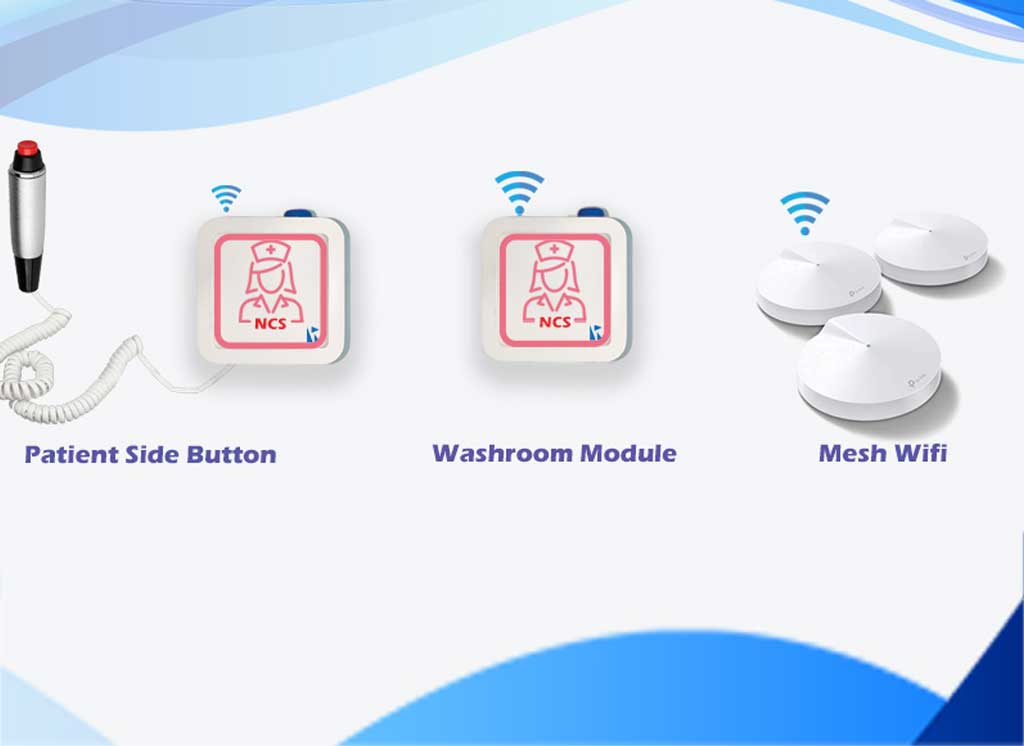

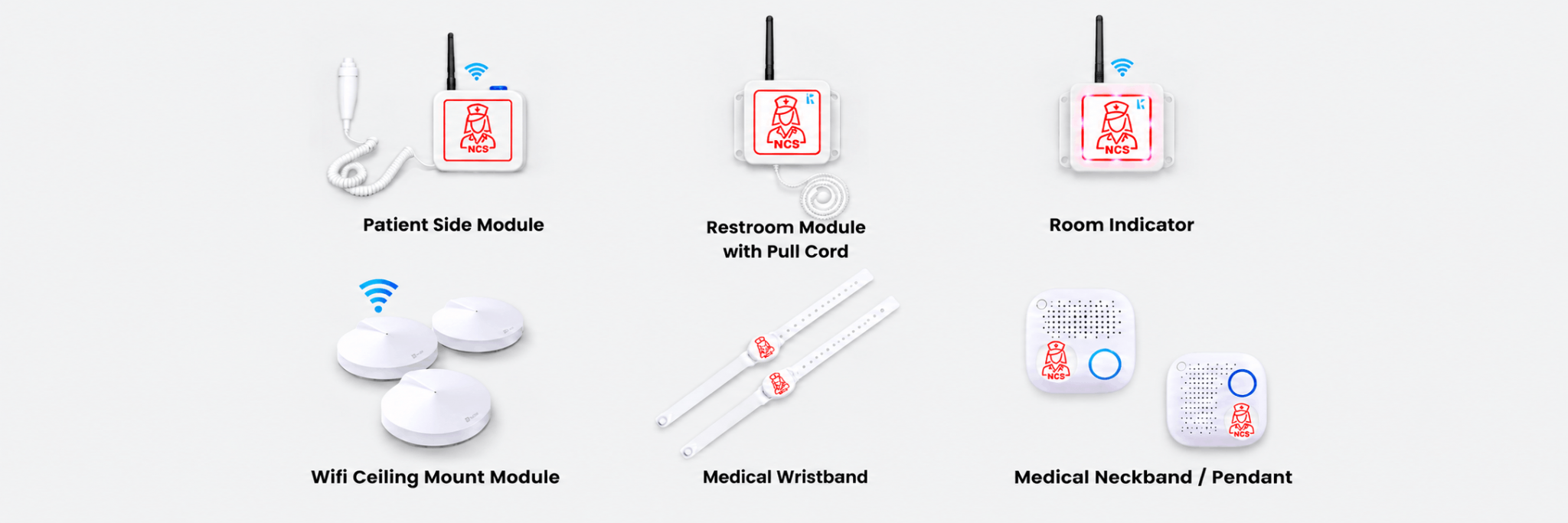

Logic Research Labs has indigenously developed a Next-Gen Nurse Call Systems (NCS) which is Wireless based and manufactured with an Aesthetic look suitable for the modern Hospital environments. The NCS Unit comprises of: 1) Nurse Call Module, Patient Push Button 2) Room Indicator Module 3) Restroom Module 4) Mesh Wifi Modules. The Mesh Network interconnects various NCS Modules to communicate with the Nurse station which has a Large digital display TVs to show the Patient Calling from a Room Number. Blue Code Protocol alarm distinctively grabs the attention of the Nurse. This can be further extended to send SMS messages to the Emergency staff. Next-Gen NCS is a Low cost, Water resistant system, and can be also integrated with the existing HMS using APIs provided.

Features

Wireless NCS Modules
Wireless Room Indicator Module
Wireless Wall-Mounted Restroom Module
NCS Nurse Dashboard [Large Display]

Wireless Mesh Network
Blue Code Protocol
Integration with HMS
Secured Networking

Intuitive Interface
Call-Response Statistics Reports
Best IP Experience

Battery Backup (Optional)

30 mins backup during Power failure.

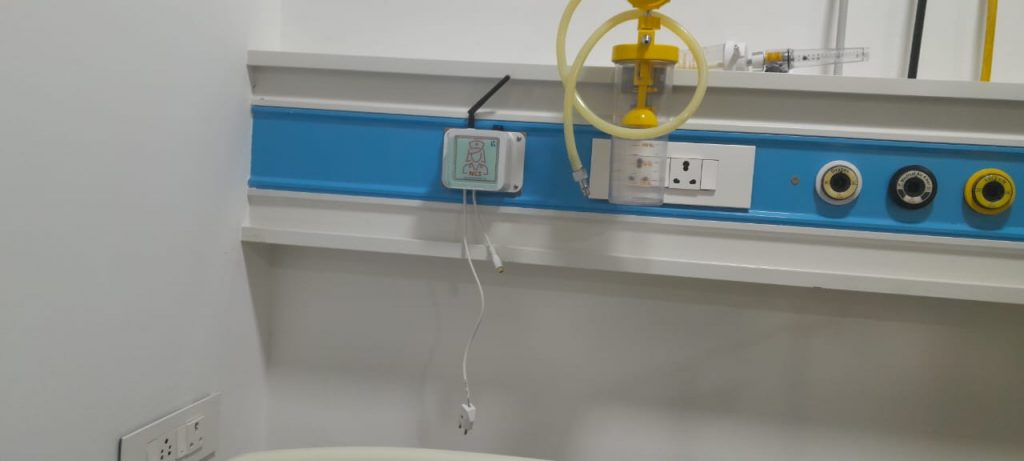

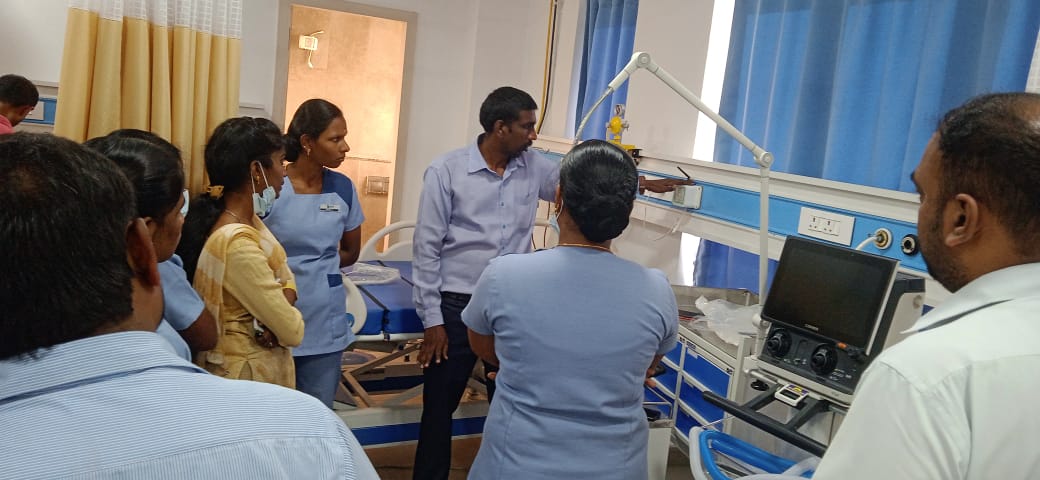

Nurse Call System deployed at CNS Hospital, Tirupur.

CNS Hospital Use case

Certified Components

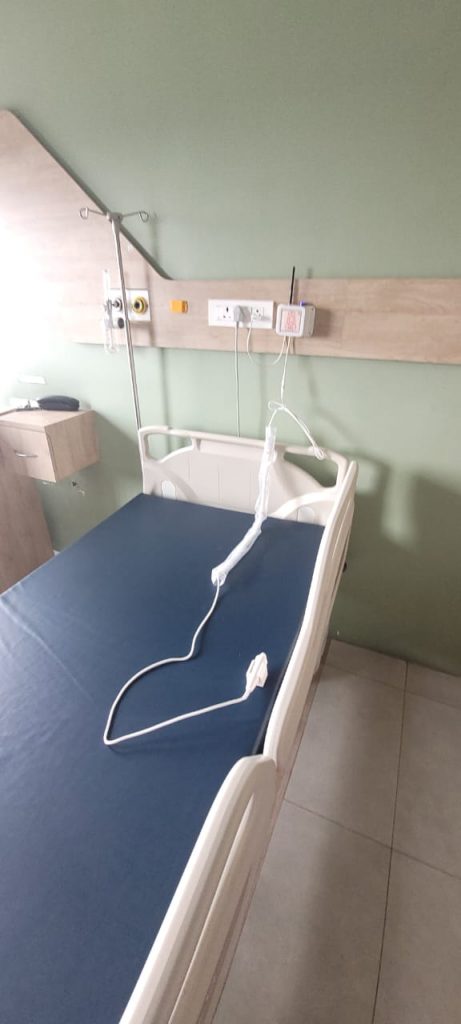

Typical In-Patient Single Room

Patients can call the Nurse by pressing the Push Button on the cord, and the alarm is triggered at the Nurse Station. When the Call is acknowledged at the Nurse Dashboard, the Room Indicator outside the respective patient's room, flashes rapidly, facilitating the Nurse to quickly locate and reach the Patient’s Room.

Typical In-Patient Double Room

Any of the patients in a shared room can call the Nurse by pressing the Push Button on the cord, and the alarm is triggered at the Nurse Station, indicating the Room Number & Bed as Bed 1 or Bed 2. When the call is acknowledged, the Room Indicator starts blinking slowly indicating a Nurse will arrive to the Patient’s room shortly. The Room Indicator stops blinking when the Nurse acknowledges in the Patient Side Module or the Restroom module.

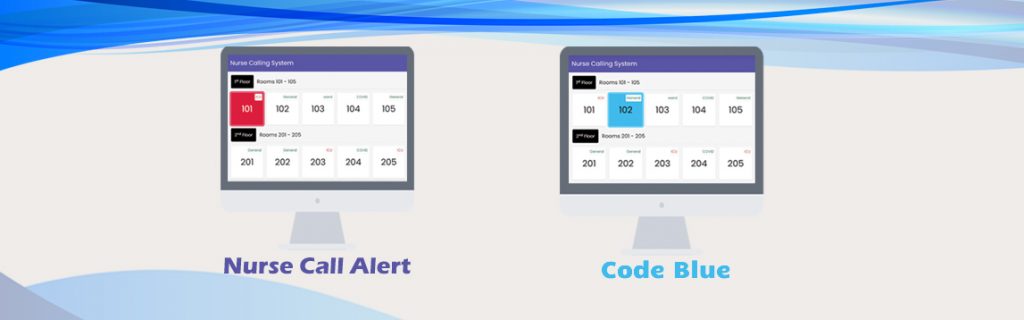

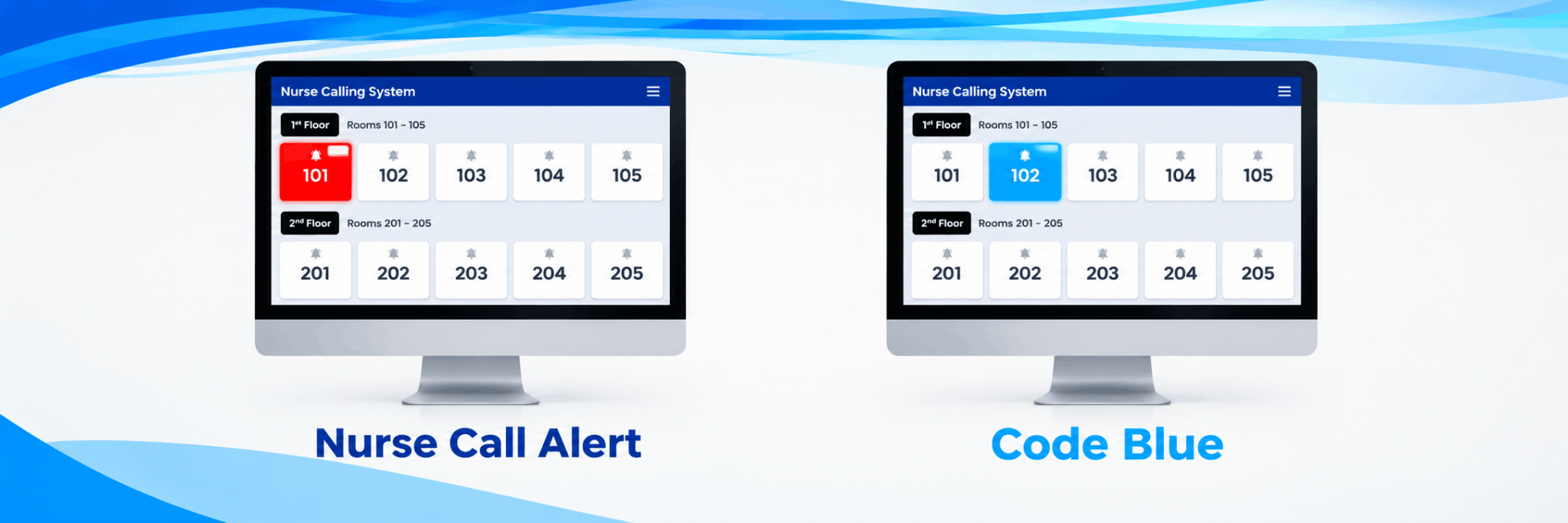

Nurse Call Dashboard

Patient Call

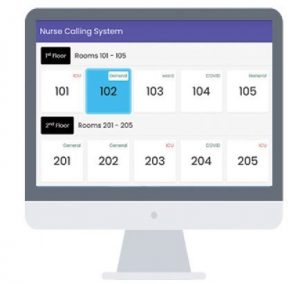

The Nurse Call Dashboard is a large digital display TV, located at the Nurse station to show the Room Number, Floor & Bed Details of the patient calling, allowing the Nurse to quickly grasp information.

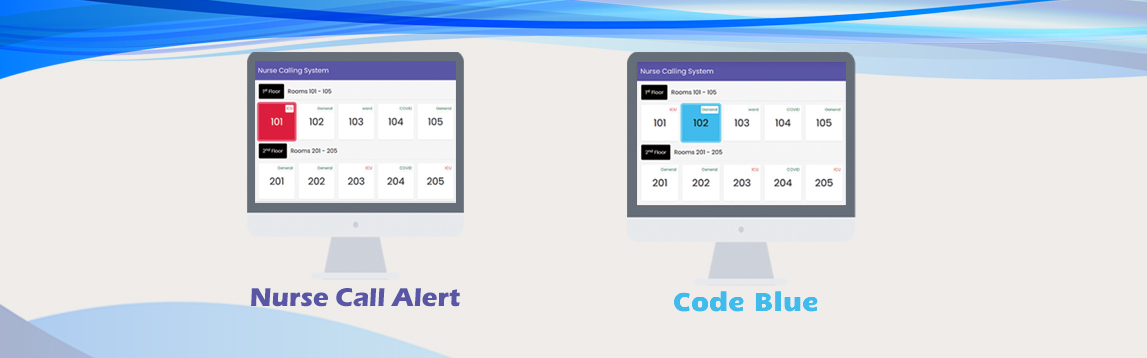

Blue Code

During an emergency, the Blue Code alarm distinctively grabs the attention of the Nurse, by a Long Press of the Nurse Call or Restroom Modules. This can be further extended to send alert SMS or Push notifications to the Emergency staff.

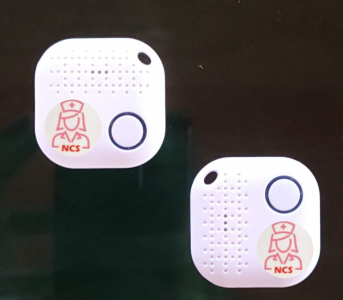

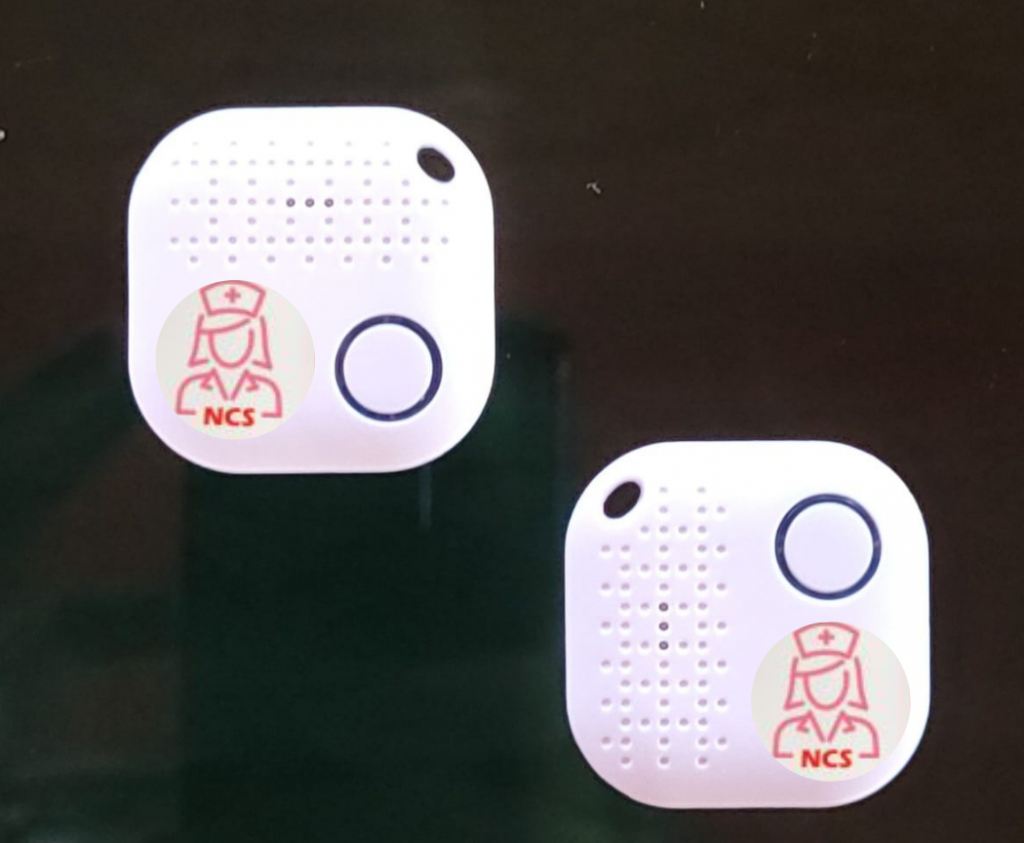

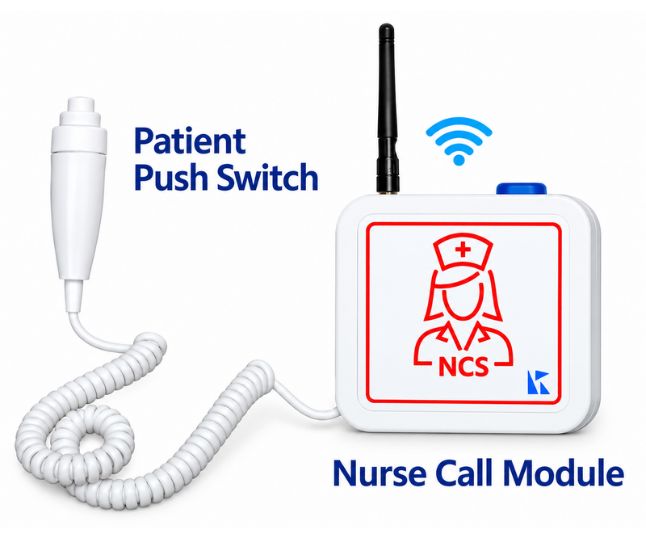

Nurse Call Module

As the patient presses the Push Button, the information of the Patient's Room Number is highlighted in the Nurse Dashboard Display at the Nurse Station with an audible alarm to grab a nurse's attention.

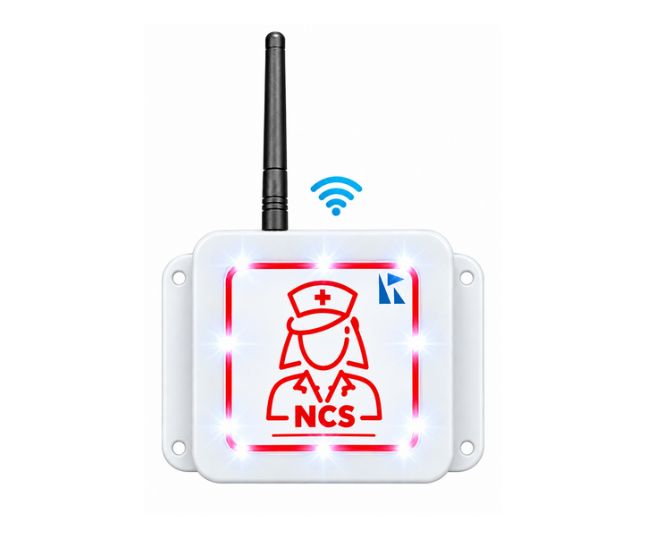

Room Indicator Module

Once the Patient’s Call has been initiated, the Room Indicator outside the respective patient's room, flashes rapidly indicating that a call has originated from the room, facilitating the Nurse to quickly locate and reach the Patient’s Room. When the call is acknowledged at the Nurse Dashboard, the Room Indicator starts blinking slowly indicating a Nurse will arrive to the Patient’s room shortly.

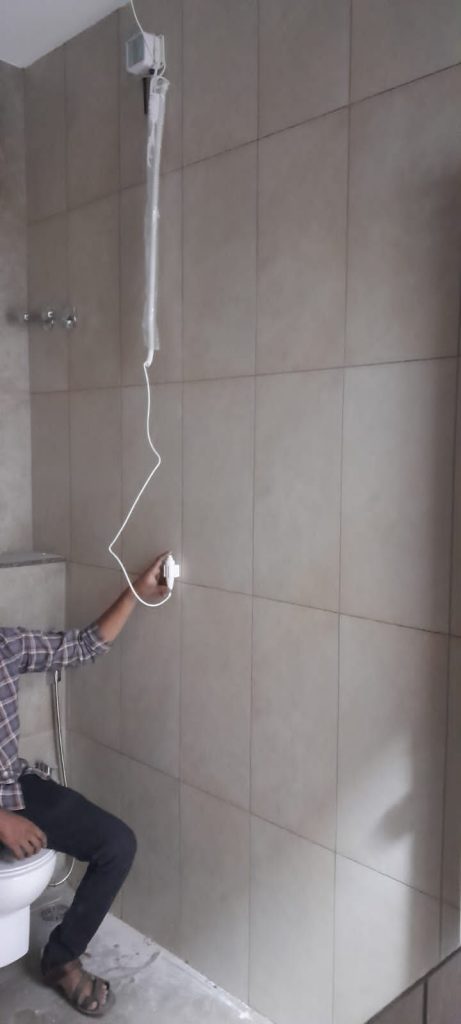

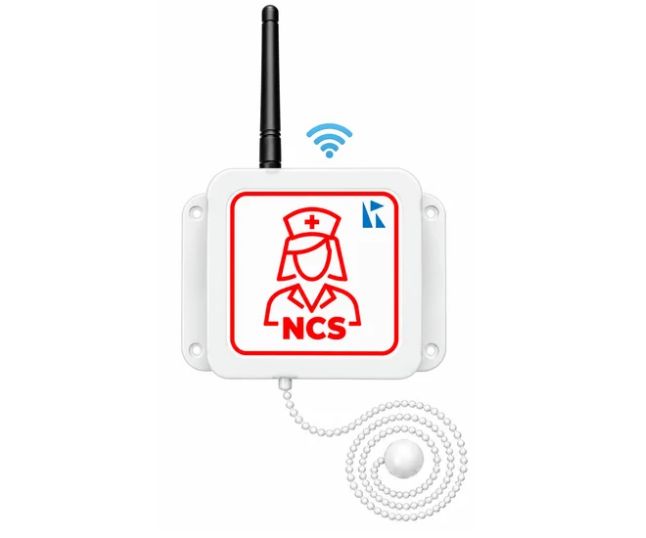

Restroom Module

The Wall-mounted Restroom Module allows patients to reach out to a Nurse for help, if they have taken a fall or if there are any other emergencies. These are water resistant, that gives long life, and no extra wiring is required.

Wi-Fi Mesh Module

The Wi-Fi Mesh module interconnects various NCS modules to communicate with the Nurse station which has a Large digital display TVs to show the Room number of the patient calling.

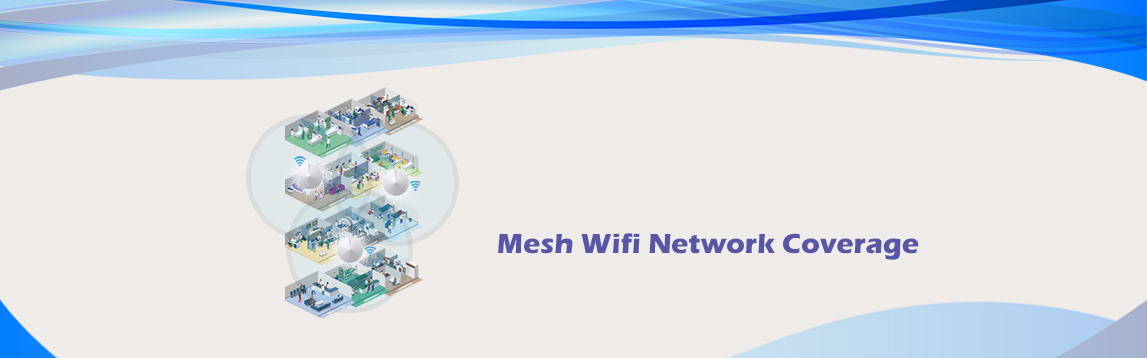

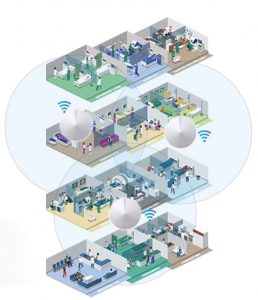

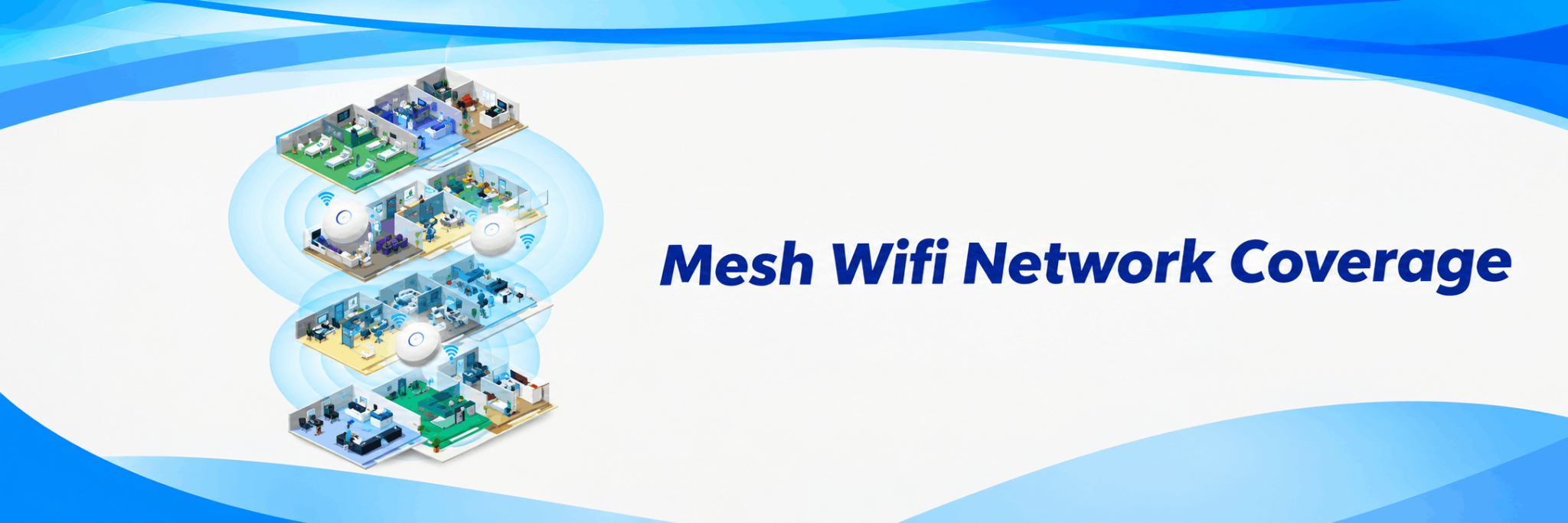

Mesh Wifi Coverage

A Dedicated Wireless Mesh Network provides coverage to all the areas of the Hospital, eliminating the weak signal or dead-zone in the hospital. The Nurse Call Module and Patient Push Button Switch, LED Module, Washroom Module and the Nurse Dashboard comprises the NCS Unit. Next-gen Mesh WiFi based NCS is preferred over wired NCS, as it eliminates the need to run wires inside a hospital; a failover mesh network provides resilience to the NCS. Best of the class Mesh Router and Mesh WiFi Network enables faster and easy deployment of NCS in hospitals of any size.
